Gravograph IS Series

Gravograph™ IS Series Large Format Engraving Machines

Gravograph wide table rotary engraving machines are perfect for the professional engraver. Providing a powerful spindle with direct current, adjustable rotation speed, rigid monoblock frame welded steel, red laser pointer, and the support of a global community. Engraving, cutting, milling, and CNC machining can be accomplished with the help of an IS series engraving solution.


  • Large Engraving Area: Up to a 24 x 48" engraving area for maximum versatility.
  • Performance: Adjustable rotation speed from 13,000 to 20,000 rpm.
  • Easy-to-use: Each machine comes standard with Gravostyle™ software.

IS6000 / IS7000 / IS8000

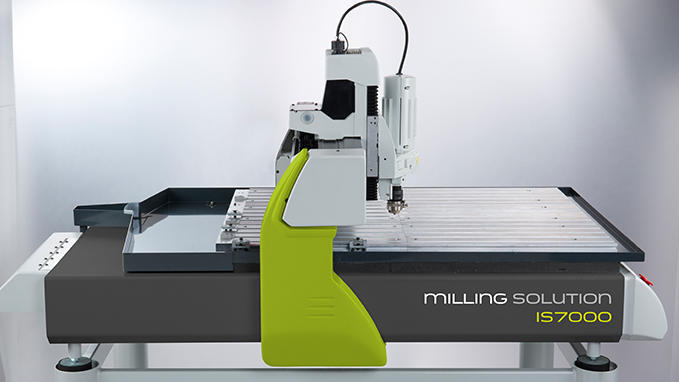

Gravograph IS7000 Large Format engraving and cutting machine.

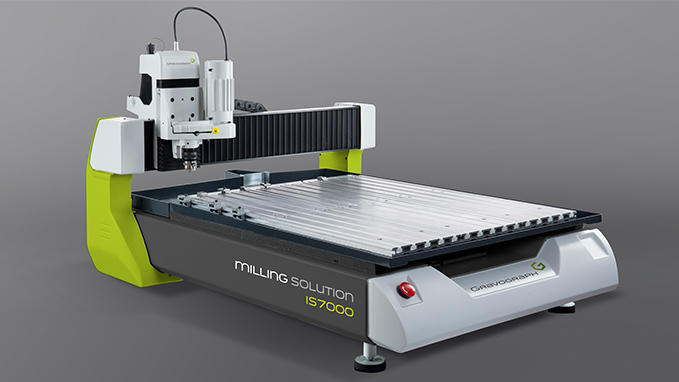

IS7000 flat bed CNC engraving and milling machine

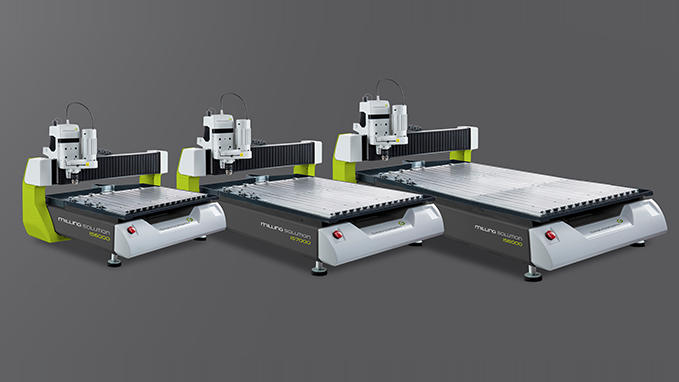

Gravograph IS6000, IS7000, and IS8000 engraving machines
Easy to use remote control

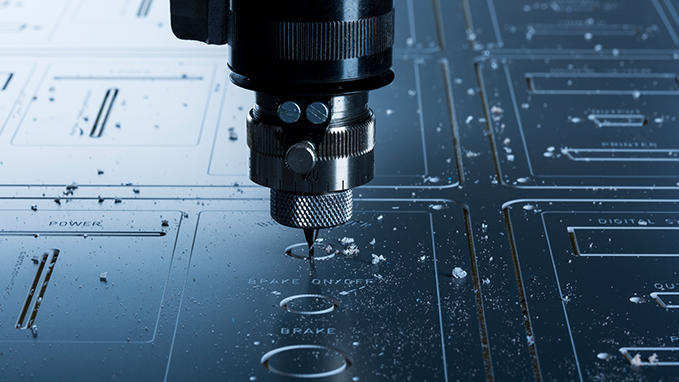

Engraving and cutting panels and labels

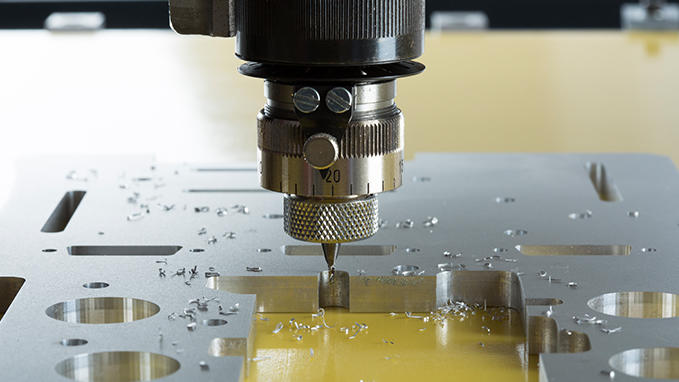

Engraving and cutting aluminum sheets


The IS6000 / 7000 / 8000 feature iQ+ or "intelligence quotient" which offers streamlined electronics, new-generation firmware and enhanced communication between the engraver and the computer.


Gravotech's IS6000 / 7000 / 8000 computerized engraving machines are suitable for professional engravers or for the industrial user. These engraving machines are appropriate for a wide range of applications including large signage, ADA signage, control panel plates, identification of industrial parts, machining and routing. In addition to the popular standard models, a high performance XP servo motor can be added to your IS6000 / 7000 / 8000, creating a faster, more powerful machine.


The IS6000 / 7000 / 8000 combines Gravotech's engraving and manufacturing quality with ground-breaking productivity. These machines optimize job transfer times, and engrave over an extended engraving area. Included are powerful spindle motors with direct current. Adjustable rotation speeds from 13,000 to 20,000 rpm for machining of various materials.

Ergonomics & Design

ERGONOMICS & DESIGN The IS6000 / 7000 / 8000 design features an unlimited Y pass through to guarantee easy loading of large panels and improving accessibility for machine maintenance. Compatible with specialized engraving accessories, including Gravograph Braille dispensers to meet specific ADA/DDA Braille and tactile signage requirements. The rigid mono-block frame in welded steel and 35 inch clearance between columns, creates a one of a kind machine.

Technical Specifications

IS6000 IS7000 IS8000
Engraving Area: 24 x 16 inches 24 x 32 inches 24 x 48 inches
Z Stroke: 3.15 inches 3.15 inches 3.15 inches
Machine Dimensions: 43 x 39.9 x 29 inches 43 x 55.9 x 29 inches 43 x 71.8 x 29 inches
Machine Weight: 370 lbs. 485 lbs. 584 lbs.

Contact us today for more information and pricing!
