Gravograph™ Large Format Laser Engraving Machines

Large format CO2 laser engraving solutions by Gravograph: the right balance between quality, know-how, and cost efficiency demands. The engraving surface of these industrial lasers measures 48" x 24". It is ideal for marking or cutting of medium and large format media.


  • Speed & Performance: Engrave up to 158 inches per second with up to 150 watts of power.
  • Size: 48" x 24" engraving surface.
  • Reliability: A combination of Gravotech's expertise and high quality.


The LS1000XP by Gravograph combines numerous innovation functions and features into one unique solution aiming to reduce production times.

LS1000XP Large format laser engraver

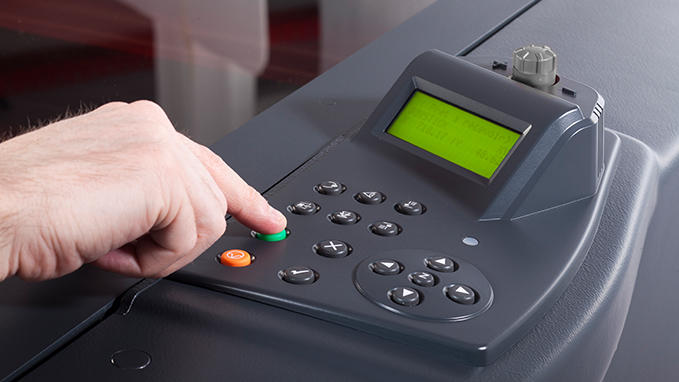

Easy to use control panel with display

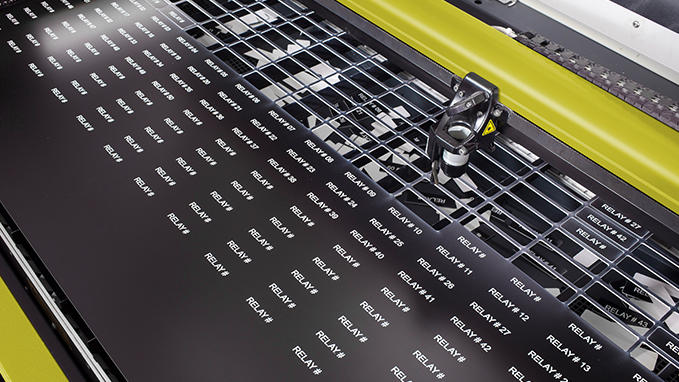

Laser vector cutting plastic tags

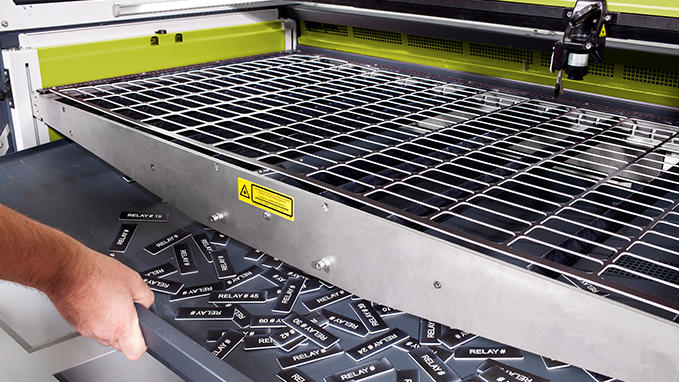

Laser part collection tray

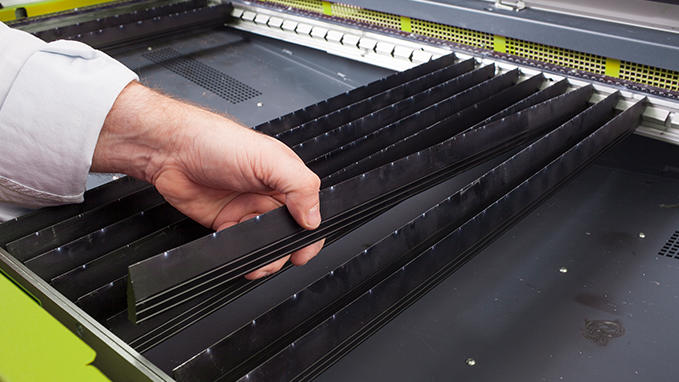

Removable blades for vector cutting

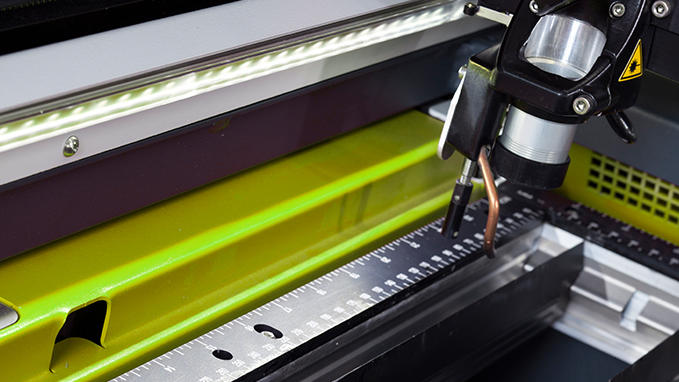

LED work surface lighting

Working Space

Loading of a whole material sheet size 48" x 24" is possible with the LS1000 Series. The Series allows vertical capacity of 11.8" for engraving of bulky objects, the production of rubber stamps and has cylindrical capability.

Made for Cutting

Optimal productivity with engraving speeds of up to 158 inches per second on a 48" x 24" working area. CO2 laser sources ranging from 60W to 150W for precise engraving and large scale cutting applications.

Designed to optimize productivity

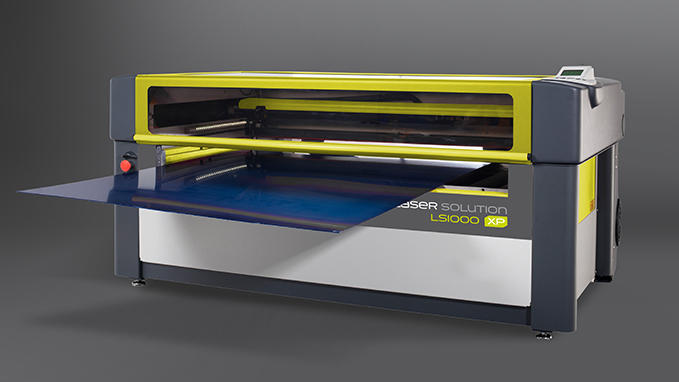

The LS1000XP standard configuration includes a multitude of innovative functions aiming to reduce production times and increase usability: Front-Loading concept for total accessibility, Integrated cutting table with removable slats and material recovery tray, Modular engraving table, Double pass-through.

Technical Specifications

Engraving Area: 48 x 24 inches
Laser Wattage: 60W, 80W, 100W, or 150W
Z Clearance: 11.8 inches
Max Raster Speed: 158 inches/second
Machine Size: 45.7 x 65.4 x 31.5 inches
Machine Weight: 485 lbs

Contact us today for more information and pricing!
